4K/UHD capability
Compatible with Ultra High Definition sources and displays
Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices
HDCP 2.2 compliant
Adheres to latest specification for High-bandwidth Content Protection
Allows protected content stream to pass between devices
Long distance HDMI extension
Transmits HDMI signals up to 230 feet (70 meters) @ 1080P and 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable
Uses easy-to-integrate category cable for low-cost, reliable system installation
Field updatable firmware
Front panel USB port provides an easy means for kit upgrades
Ensures long term system return on investment
Multi-channel audio compliant
Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
Allows any multi-channel audio stream to be used within a professional audio system
Front panel Power and Link status LEDs
LED indicators provide power and HDBaseT link status information
Provides easy setup and troubleshooting
Rear panel I/O connectors
Placement of ports on rear panel simplifies wire management
Saves installation time and eliminates clutter
Low-profile, 1 inch (25 mm) high quarter rack-width enclosure
Easy installation into system racks and confined spaces behind displays
Keeps devices out-of-sight when placed in public spaces
Included accessories
User guide, (2) wall power supply with interchangeable plugs for international power outlets, mounting brackets

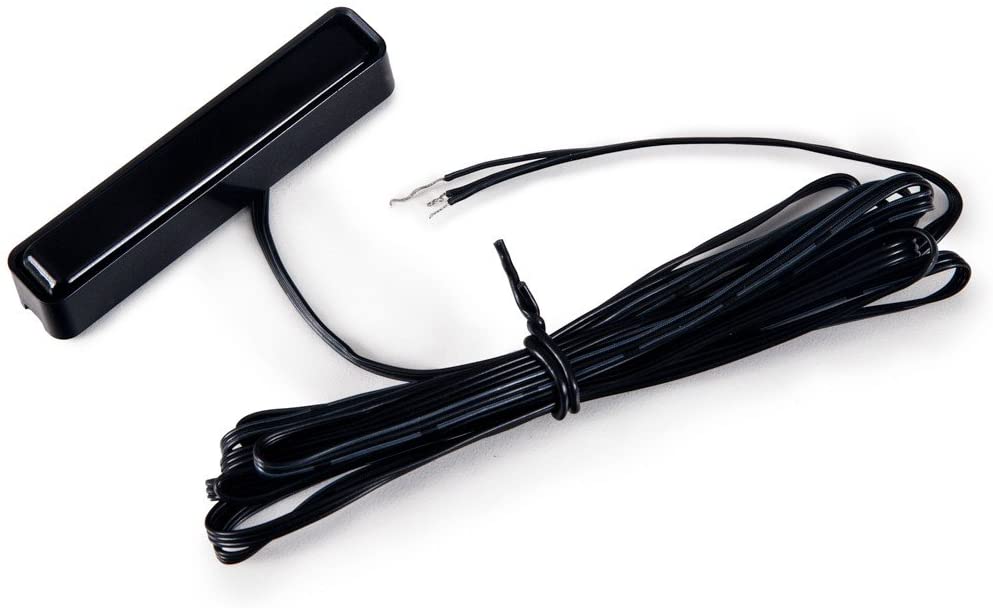

- IR Receiver designed for Atlona UHD-EX Series extenders
- Uses standard, 12 volt-based system
- Red status LED provides positive indication that the receiver is capturing a signal from the IR remote control
- Three-pin conductor cable with stripped ends; Signal, Ground, and Power conductors
- Length: 6.6 ft. (2 m) and Self-adhesive backing
- Front panel Power and Link status LEDs
- Rear panel I/O connectors
